3-15x50 Hunting Rifle Scope With Red / Green / Blue Illuminated Reticle Riflescope

Brand Name : OEM

Model Number : 3-15x50FFP

Certification : CE,ROHS,REACH

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Delivery Time : 7~30 days

Packaging Details : Optional

Type : Rifle Scope

Eye Relief : 103 mm

MOA : 0.25

Storage Temperature : -40C to +85C

Coating : FMC

Diopter range +/- : 2

Contact Now

3-15x50 Rifle Scope with Red/Green Illuminated Reticle Riflescope

Product Features

✔ Waterproof: Long range Rifle Scope 3-15x50 hunting scope can meet with IPX7 level waterproof standard.

✔ Fogproof: vacuum and lifetime pressurising with a mixture of nitrogen and rare earth gases to prevent fogging or hazing.

✔ Shockproof: Shock proof (to greater than 3000G) all lenses have fore and aft machined locking rings.

✔ Turret Lock: Patented internal locking turret design.Turret with covered.

✔ Reticle: Revolutionary front and rear reticle focal plane design dramatically reduces parallax & provides an immovable reticle plane.

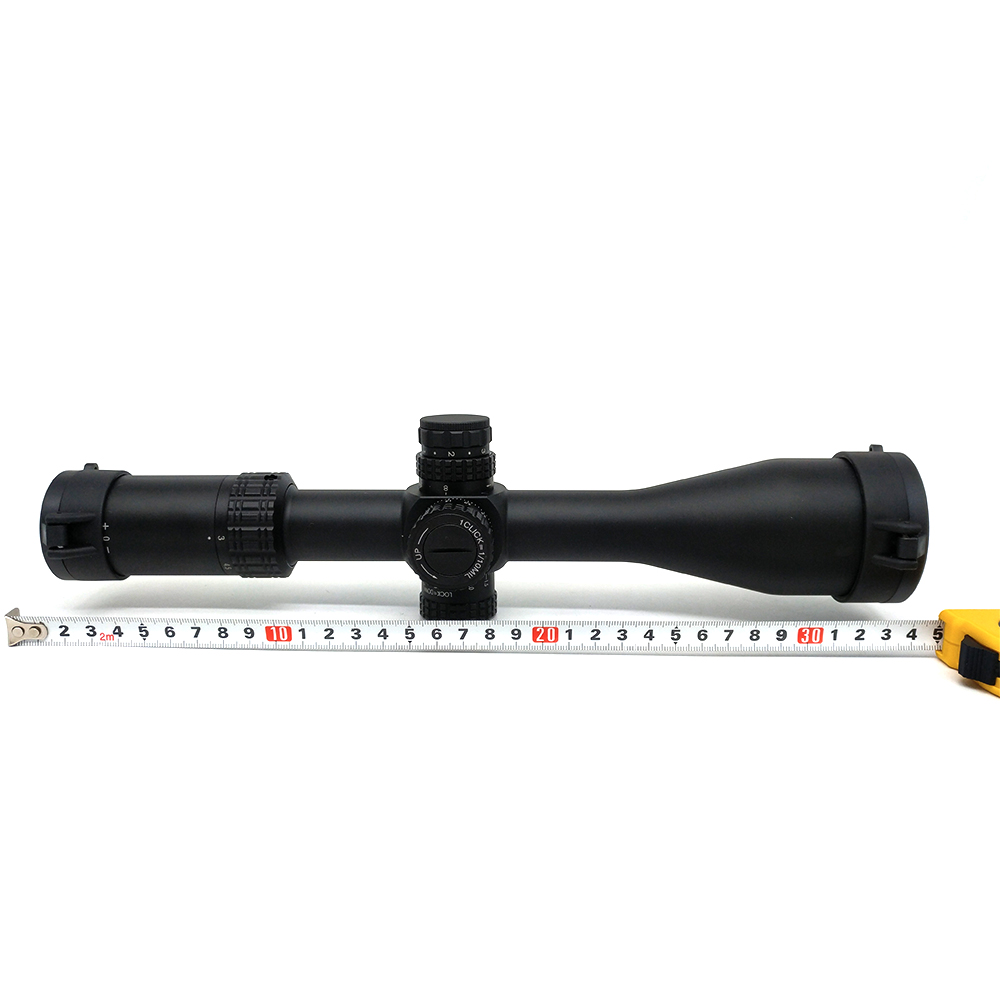

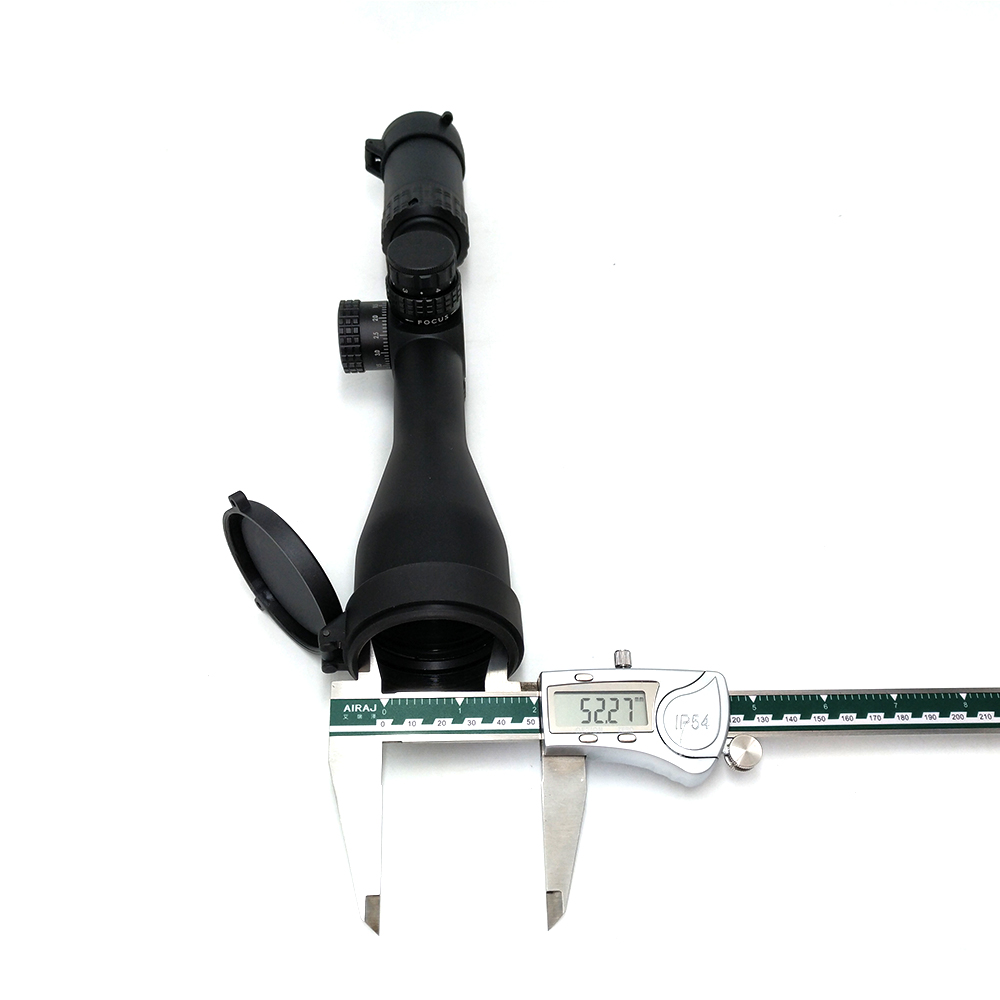

Detailed Images

3-15x50 Hunting Rifle Scope With Red / Green / Blue Illuminated Reticle Riflescope

Product Parameters

Magnification Low	3
Magnification High	15
Objective diameter	50
Maintube diameter	30
Eyepiece Field of view	15.55
Diopter range +/-	2
Exit Pupil Distance (mm)	103
Standard Klick value for E/W (MOA)	0.5
Tactical turret adjustments knob	yes
Total travel elevation (@ 100 yds)	≥ 50MOA
Total travel windage (@ 100 yds)	≥ 50MOA
Parallax Compensation	100yds
Parallax compensation type
Fast focus eyepiece	yes
Sealing gas used	Nitrogen
Clear aperture min magnification (mm)	16
Clear aperture max magnification (mm)	24
Eff. exit pupil diameter @ min. magnification ± 3 %	13
Eff. exit pupil diameter @ max. magnification ± 3 %	4
Maximum resolution in Arc. Second (min. Magnification)	11
Maximum resolution in Arc. Second (max. Magnification)	7
Range of Function temperature (Unit can still be operated)	-25°C/+55°C
Storage temperature	-40C to +85C
Range of Dioptric compensation +/- dpt	2
Permissible backlash Dioptric Compensation	<0.25dpt
objective field of view @ 100m min magnification (ft @100yds)	81.22992406
objective field of view @ 100m max magnification (ft@100yds)	16.24598481
Change of impact point after change of magnification (MOA)	1.5
Parallax of Reticle (minute)	<.3'
Centering Reticle, full Field of View	± 7 %
Straightening of the Reticle	± 2 °

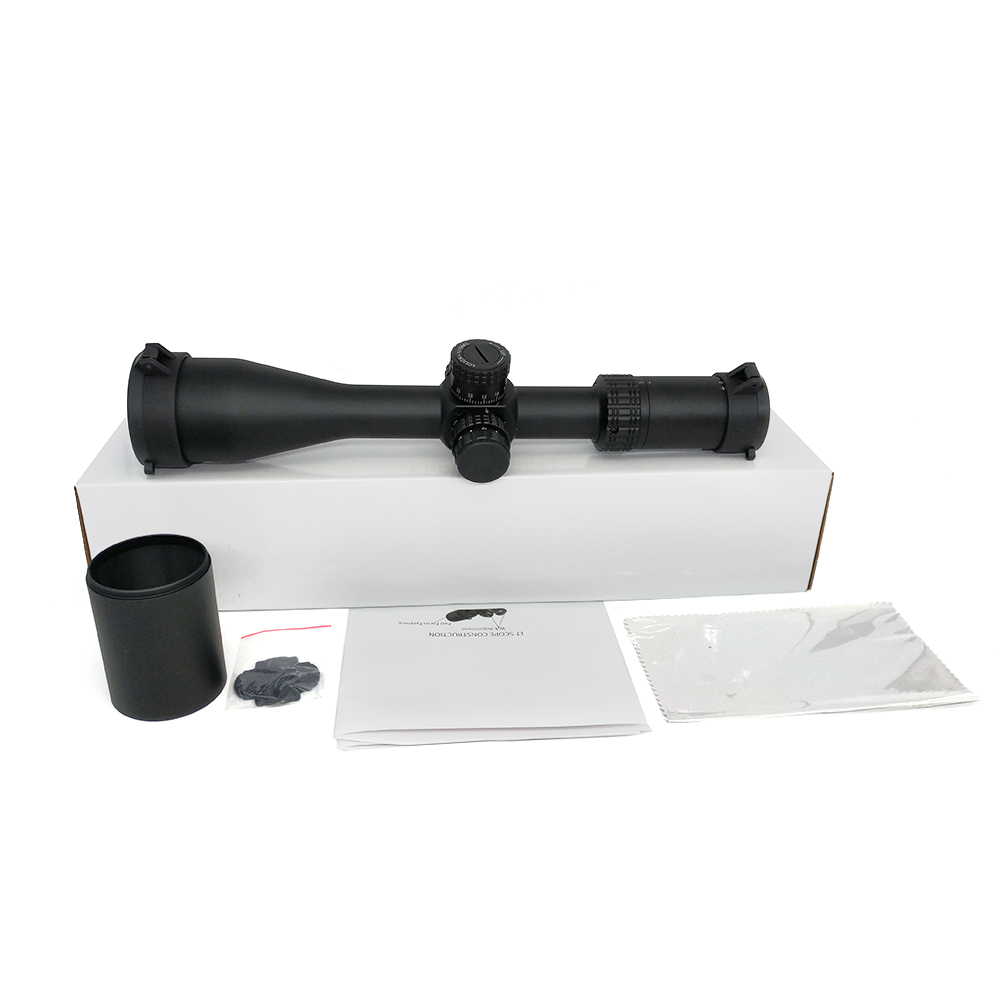

Product Package

1 x 3-15x50 scope
1 x Lens Cover
1 x Lens Cleaning Cloth

3-15x50 Hunting Rifle Scope With Red / Green / Blue Illuminated Reticle Riflescope

Warranty

1. In addition to professonal design and innovative technology, our products are also distinguished by unmatched quality. We check every production step and every individual product for 100% quality prior to delivery. We therefore grant our customers an extensive warranty.
2. Except man-made mistakes, we will exchange the defective with a brand new one within 7 days after you get our product.
3. According to the guild regulations customer shall be responsible for the returning shipping fee.
4. Our repair and service department will be happy to help you at all times if you have any further questions about the warranty on our products.

3-15x50 Hunting Rifle Scope With Red / Green / Blue Illuminated Reticle Riflescope
